9DESIGN · FOR SECURITY PROFESSIONALS
C30One electric lock.
For all types of doors.
A compact electric lock built around a simple Ø30 mm installation.
See it in action
Ø30 mm installation • Fail Safe / Fail Secure • Door status signal
01 / ONE LOCK. MORE POSSIBILITIES.

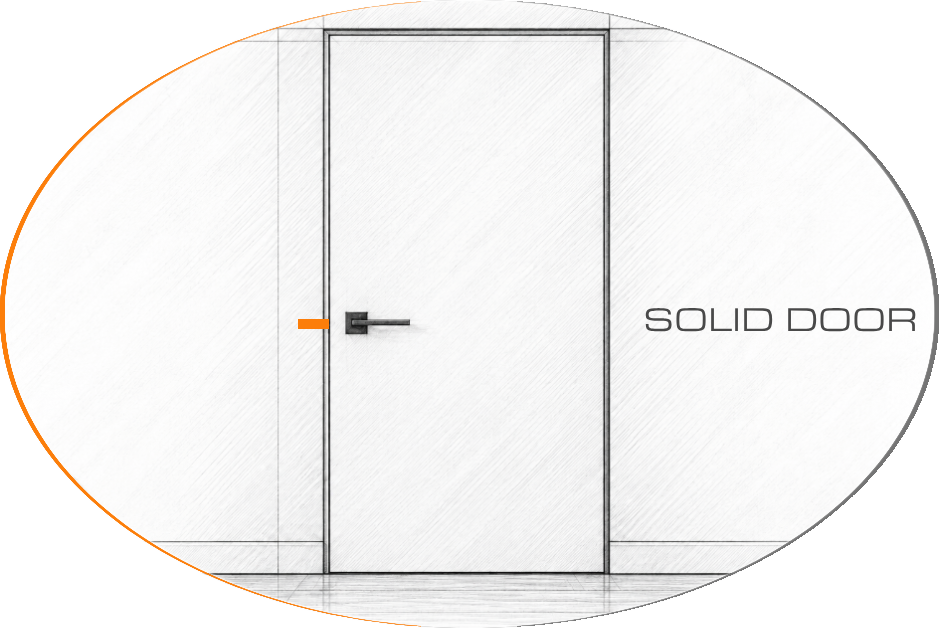

Different doors.
The same C30.

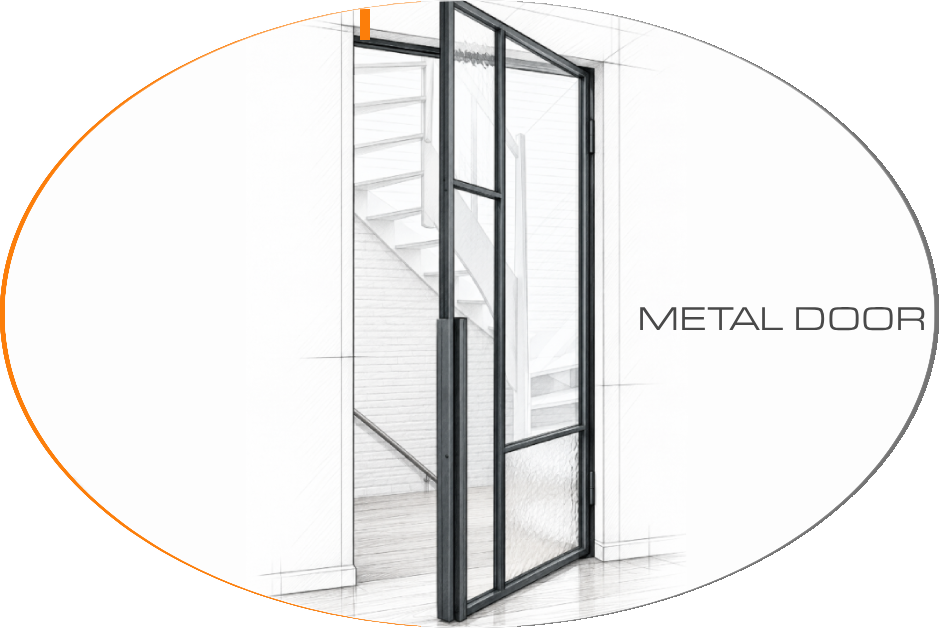

Discover C30 applications for glass doors, metal doors, sliding doors and more.
One compact lock concept for your next access-control project.
12-second illustrated overview.
02 / SIMPLE INSTALLATION
Drill. Install.
Connect. Done.
2 locks. Approximately 15–20 minutes.
Based on Roel’s first two-lock installation. Actual time depends on the door frame and cable route.
- Position the strikesClose the doors, bond the strikes to the glass and mark the frame.
- Drill & routeTwo Ø30 mm × 140 mm openings, then Ø6 mm cable passages.
- Connect & securePull the cables, connect the locks and secure each C30 with three Allen screws.
03 / ANOTHER WAY TO INSTALL
No drilling
into the door?
Surface-mount the C30 with an extrusion profile.
Choose the mounting approach that suits your installation.
04 / THE ESSENTIALS
Built for professional installations.
- Installation diameter
- Ø30 mm
- Operating modes
- Fail Safe / Fail Secure
- Supply
- 10–26 V DC
- Feedback
- Door status signal
- Handing
- Left / right
YOUR NEXT INSTALLATION
